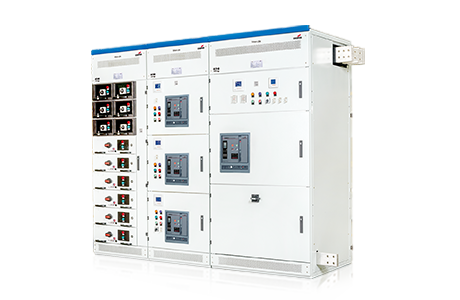

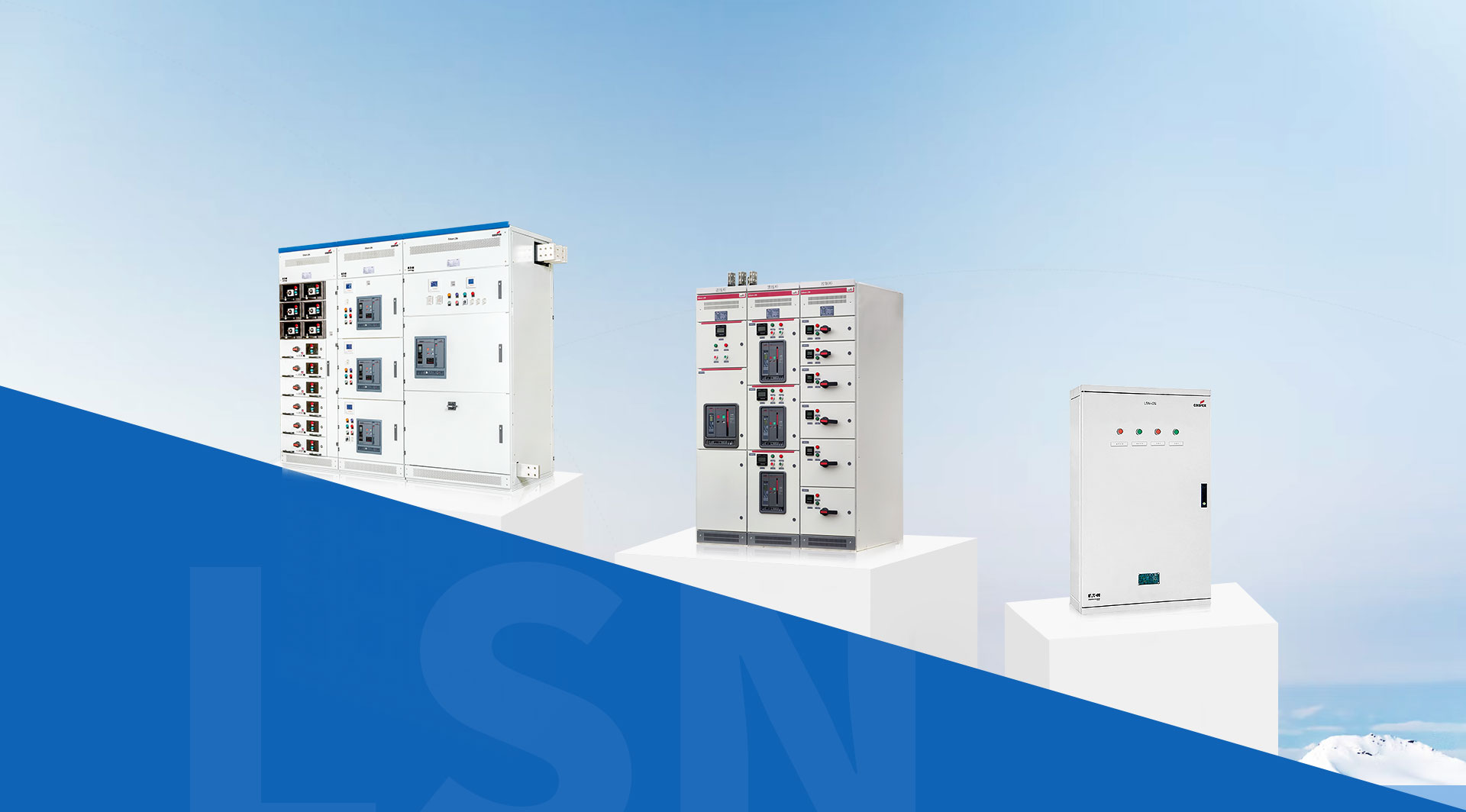

LSN Series LV Assembly Products
Max. rated current: 6,300A. It has passed the national mandatory test certification. The device is applicable for 3-phase AC 50~60Hz control and distribution system of 690V and below
It has been extensively applied to electric consumption users such as power plants, substations, operating enterprises, etc.
Series Overview
Edison LSN is developed by Eaton Power Systems R&D in response to today's evolving grid LV distribution system needs. It complies with the GB7251.1 standard. As a LV motor control and power distribution center, it can be widely used in power plants, substations, enterprises and other power users.
Product Advantages
Product Strengths
01
Modular design, compact structure, small volume, space saving, high investment efficiency, and low use cost during the service life.
Adopt highly reliable electrical components and advanced plug-in technology, it is maintenance-free during the service life.
With excellent insulation performance, it has good insulation level and excellent electrical performance even if the insulating gas pressure is at zero gauge pressure.
Higher reliability of power supply, simple and safe operation, and maximum protection of operation and maintenance personnel.
No inflation or deflation is required for on-site installation and expansion, and the use of reusable materials facilitates the recycling after service life.
It has successfully passed the conventional type tests stipulated by national standards and industry standards, and successfully passed the IAC internal arc fault test, so the safety performance of the switchgear is greatly improved.
Reliable operation
02
In line with the requirements of the latest national standards, the whole series of products have passed the type test certification.
Made in the original factory, having passed ISO9000, 14000 certification
The system is fitted with Eaton’s full series of high-quality components and parts to optimize running status
Operation safety
03
The rated current of the main bus bar can reach 6,300A. No capacity reduction design is made for incoming line of ACB 3200A and below
Drawer has a reliable independent mechanical interlocking function. The interlocking mechanism could best ensure operator’s safety
The internal combustion arc is required to reach 100kA/400ms in the cabinet; the function of ARCON?, ARMS? can be set
Standard fully insulated distribution bus design
The design of Grade 9 earthquake intensity fortification
Flexible system, modular design, compact structure, small space occupation, easy expansion and upgrading of switchgear
Symmetric design of double-group distribution bus and flexible drawer interchangeability
Flexible omnidirectional incoming and outgoing line modes
Minimum cabinet size and different combinations of ACB solutions reduce site occupation area
Optimize investment
04
Single-sided drawers could realize densest arrangement and save space
Single/double group distribution bus supports high-density unit and reduces installation space
The modular design facilitates replacement of components and drawer units and minimizes the impact on system operation
High-grade materials and components are used
