Generator Switching

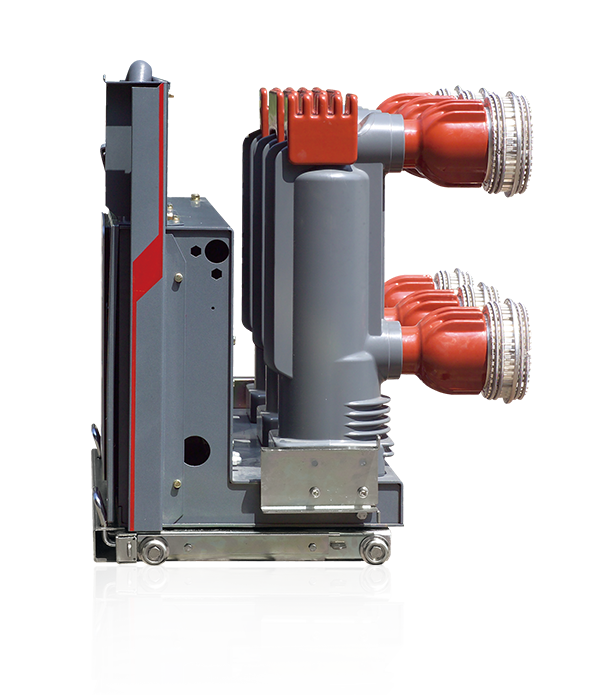

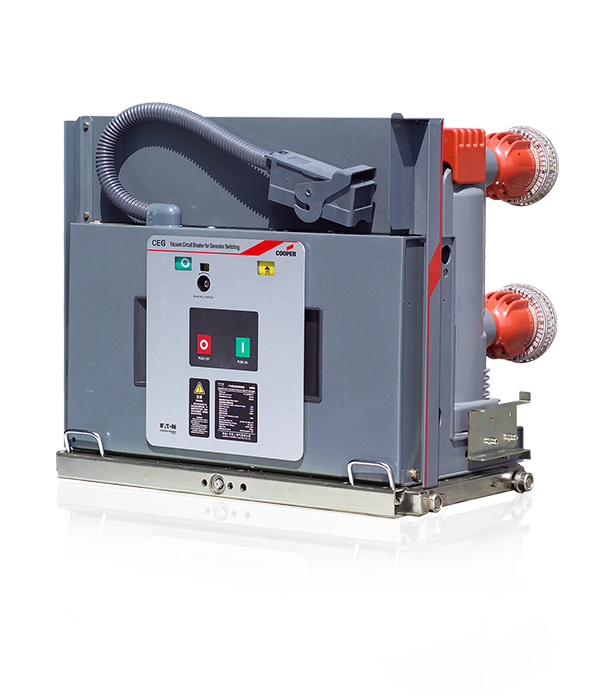

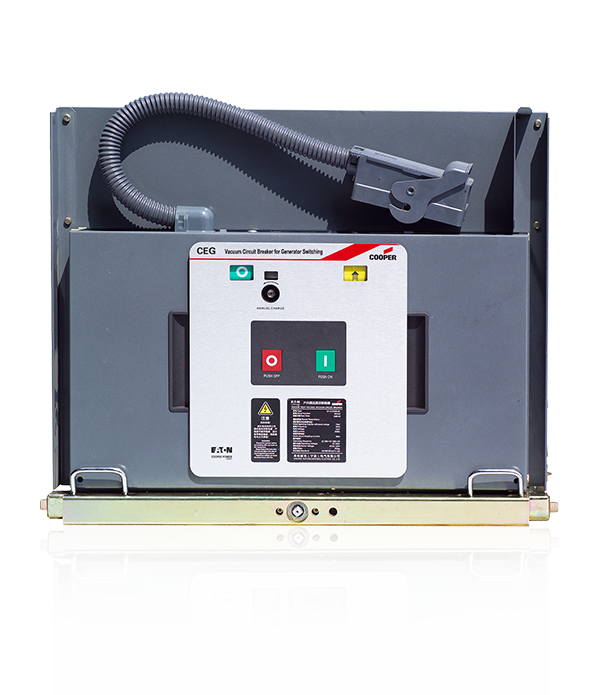

CEG Vacuum Circuit Breaker Special for Generator Switching
CEG, vacuum circuit breaker special for generator switching, is a new-generation dedicated MV switchgear developed by Thomas Edison R&D Center of Cooper. It can be widely used in thermal power plants, hydropower plant, biological power plant and other applications.
Product features
Long-times life cycles: embedded insulation technology and modular spring mechanism are applied in CEG; key components, such as main shaft, spring, damper, are purchased from the worldwide; mechanical life time of CEG is 10,000 times.
Strong breaking capability: 8 cycles at rated short circuit current; 50 cycles at rated load; DC components 82%.
Rated peak withstand current up to 140kA.
Easy maintenance: both withdrawable and fix trolley design, fit with typical switchgears in the market, Easily maintenance for customers and operators.
High reliability: CEG has passed the full type test according to the special IEEE/GB standards for generator switching, guarantee the safety for end users.
